PAD printer machine
product

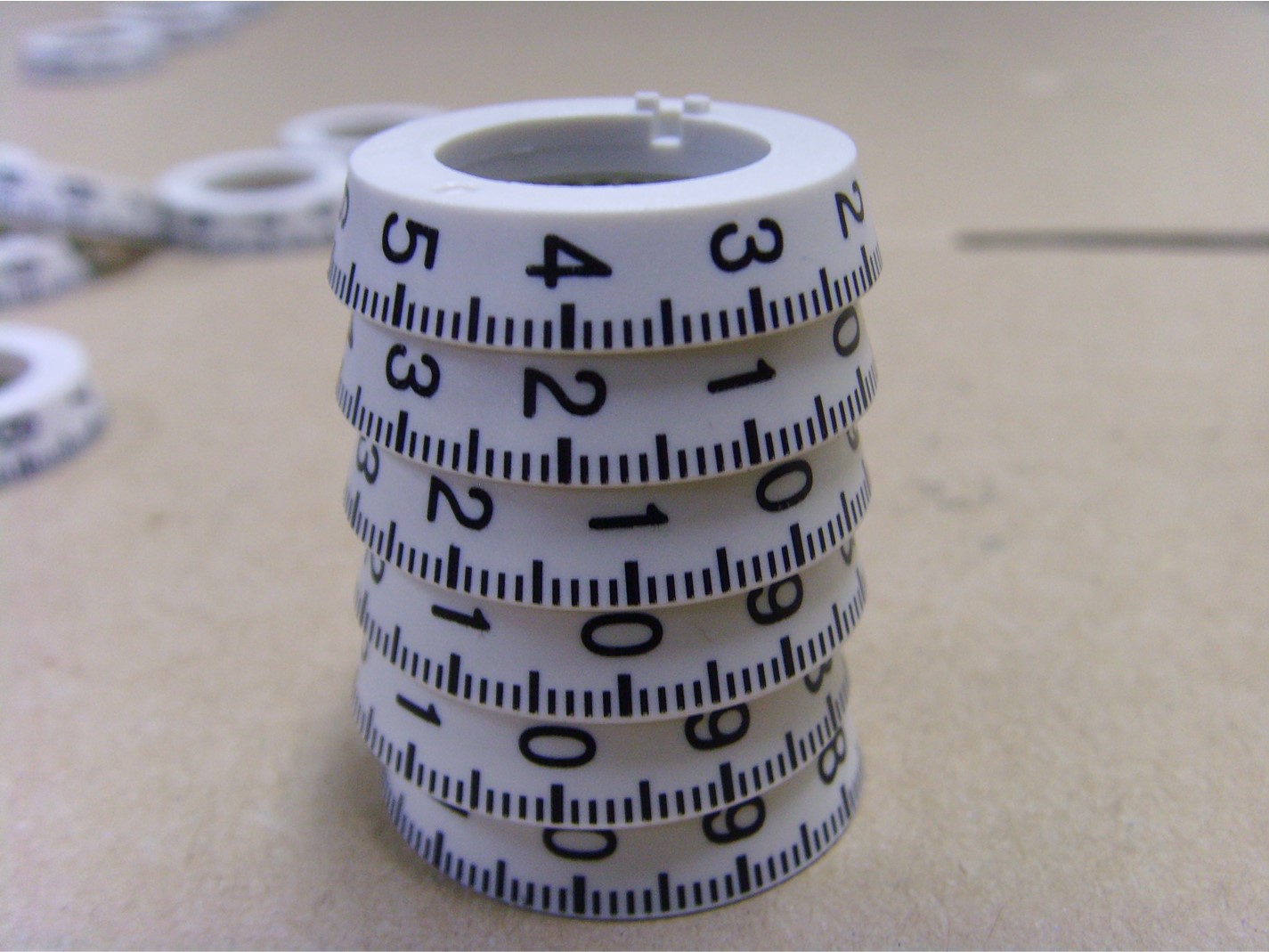

PSA 901C
FEATURES
- Numerical control of each drive part via PLC & TOUCH
- Display Total Production Qty / 1 Cycle Takt Time
- Display PAD & PLATE replacement cycle
- Display INK usage cycle
SPECIFICATION
| Classification | Specification (MM) |
| IMAGE PLATE SIZE | 100 * 225 |
| INK CUP | 90 |
| Max Print IMAGE | 75 |
| Horizontal (Fwd/Bwd) STROKE | 125 |
| Vertical (Up/Down) STROKE | 75 |
| Drive Method | Air Cylinder (Pressure 6bar) |
| Control Method | PLC & TOUCH SCREEN |
| Power Consumption | 110/220, 50/60Hz |
| Machine Dimensions | |
| Options | PAD CLEANNING, 10T STEEL PLATE |

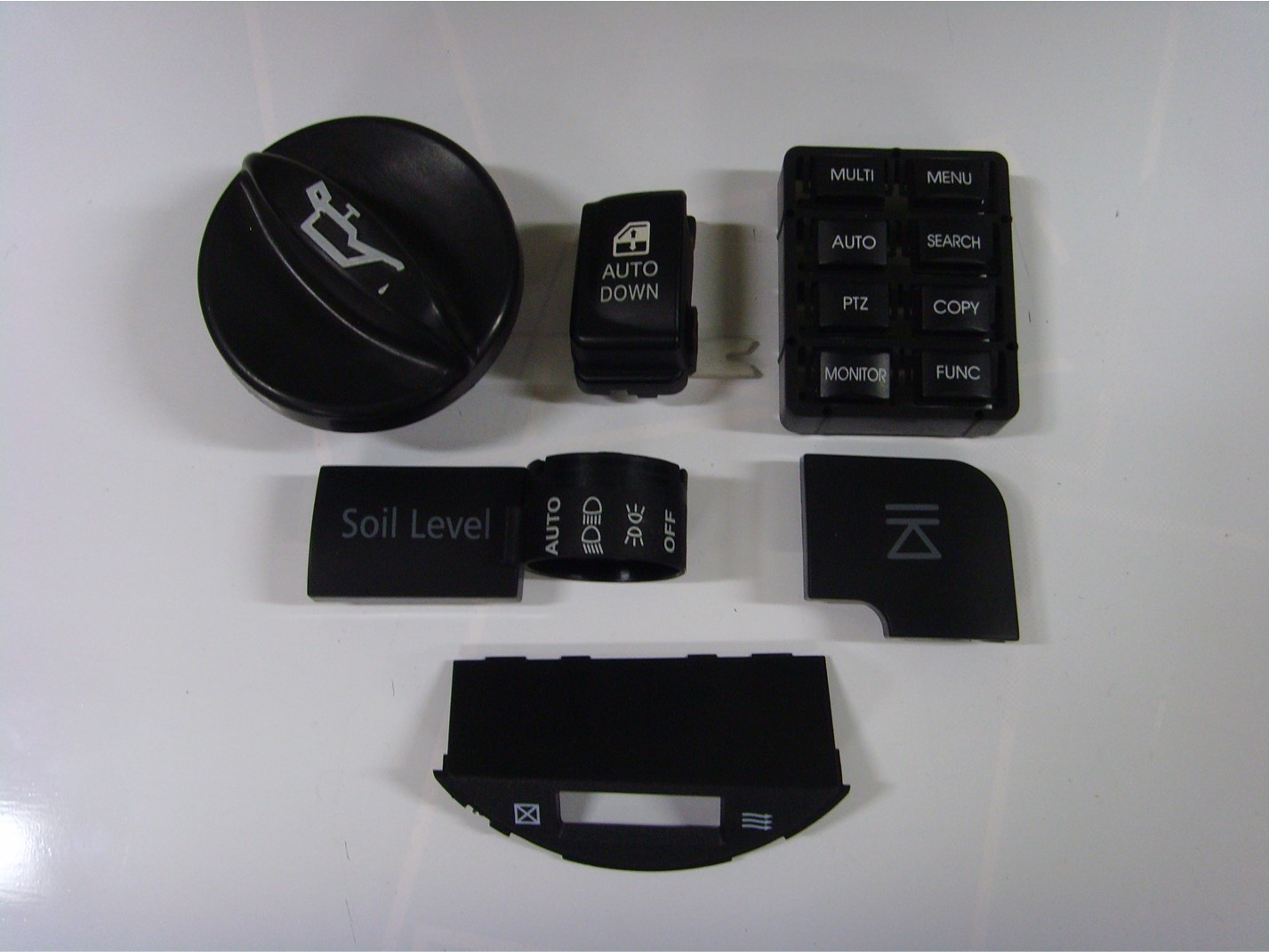

PSA 110C
FEATURES
- Numerical control of each drive part via PLC & TOUCH
- Display Total Production Qty / 1 Cycle Takt Time
- Display PAD & PLATE replacement cycle
- Display INK usage cycle
SPECIFICATION
| Classification | Specification (MM) |
| IMAGE PLATE SIZE | 120 * 250 |
| INK CUP | 110 |
| Max Print IMAGE | 95 |
| Horizontal (Fwd/Bwd) STROKE | 125 |
| Vertical (Up/Down) STROKE | 100 |
| Drive Method | Air Cylinder (Pressure 6bar) |
| Control Method | PLC & TOUCH SCREEN |
| Power Consumption | 110/220, 50/60Hz |
| Machine Dimensions | 600 * 840 * 1210 |
| Options | PAD CLEANNING, 10T STEEL PLATE |

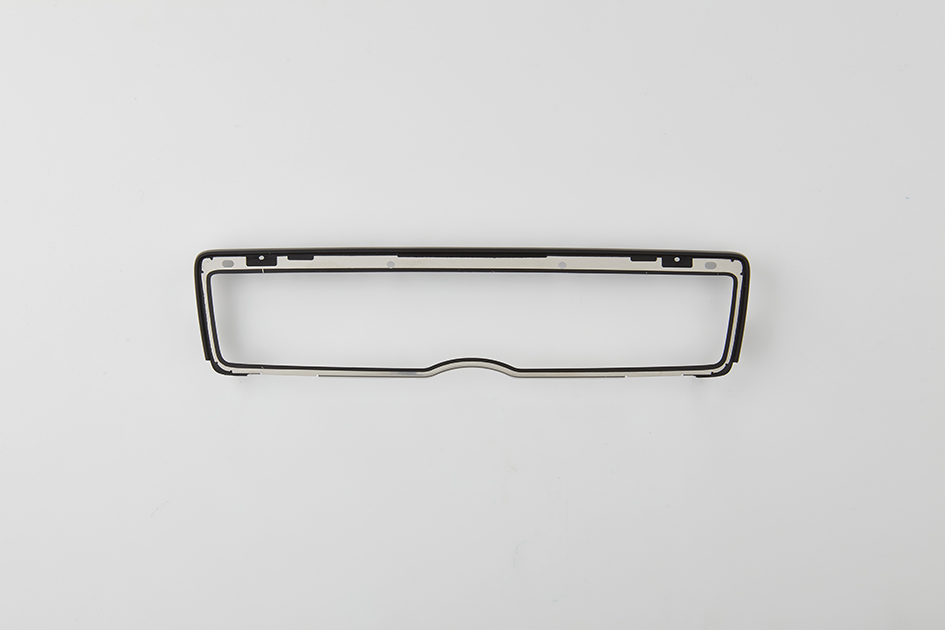

PSA 130C
FEATURES
- Numerical control of each drive part via PLC & TOUCH
- Display Total Production Qty / 1 Cycle Takt Time
- Display PAD & PLATE replacement cycle
- Display INK usage cycle
SPECIFICATION
| Classification | Specification (MM) |
| IMAGE PLATE SIZE | 130 * 300 |
| INK CUP | 130 |
| Max Print IMAGE | 115 |
| Horizontal (Fwd/Bwd) STROKE | 150 |
| Vertical (Up/Down) STROKE | 100 |
| Drive Method | Air Cylinder (Pressure 6bar) |
| Control Method | PLC & TOUCH SCREEN |
| Power Consumption | 110/220, 50/60Hz |
| Machine Dimensions | 600 * 900 * 1250 |
| Options | PAD CLEANNING, 10T STEEL PLATE |

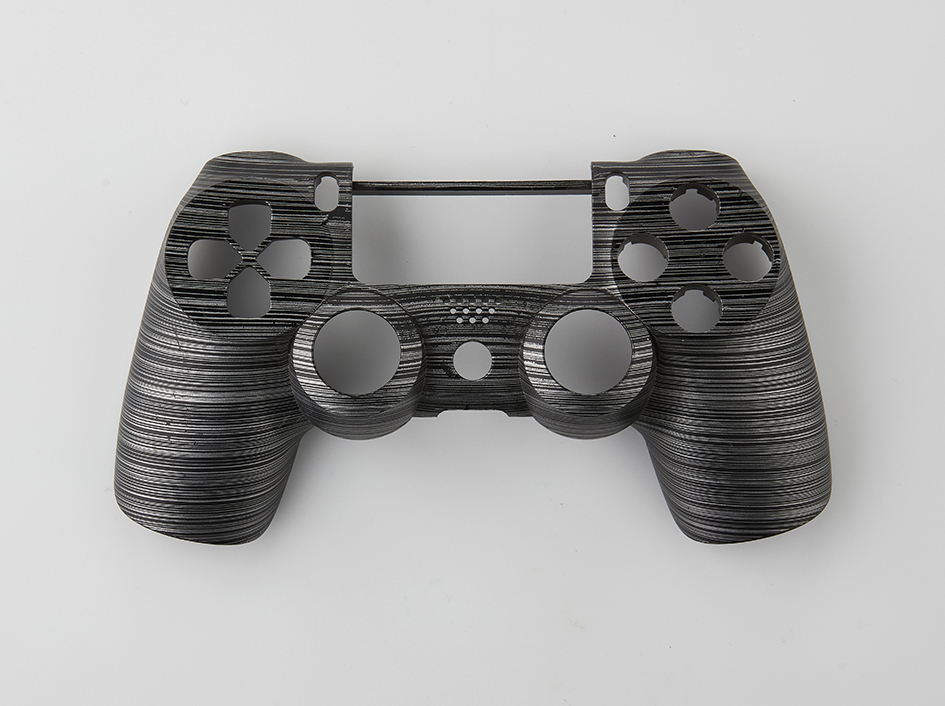

PSA 160C
FEATURES
- Numerical control of each drive part via PLC & TOUCH
- Display Total Production Qty / 1 Cycle Takt Time
- Display PAD & PLATE replacement cycle
- Display INK usage cycle
SPECIFICATION
| Classification | Specification (MM) |
| IMAGE PLATE SIZE | 180 * 360 |
| INK CUP | 160 |
| Max Print IMAGE | 145 |
| Horizontal (Fwd/Bwd) STROKE | 150 |
| Vertical (Up/Down) STROKE | 100 |
| Drive Method | Air Cylinder (Pressure 6bar) |
| Control Method | PLC & TOUCH SCREEN |
| Power Consumption | 110/220, 50/60Hz |
| Machine Dimensions | 600 * 13000 * 1750 |
| Options | PAD CLEANNING, 10T STEEL PLATE |
PSA 200S
FEATURES
- Numerical control of each drive part via PLC & TOUCH
- Display Total Production Qty / 1 Cycle Takt Time
- Display PAD & PLATE replacement cycle
- Display INK usage cycle
SPECIFICATION
| Classification | Specification (MM) |
| IMAGE PLATE SIZE | 220 * 440 |
| INK CUP | 200 |
| Max Print IMAGE | 175 |
| Horizontal (Fwd/Bwd) STROKE | 500 |
| Vertical (Up/Down) STROKE | 200 |
| Drive Method | Air Cylinder (Pressure 6bar) |
| Control Method | PLC & TOUCH SCREEN |
| Power Consumption | 110/220, 50/60Hz |
| Machine Dimensions | 1000 * 1500 * 2100 |
| Options | PAD CLEANNING, 10T STEEL PLATE |
PSA 250S
FEATURES
- Numerical control of each drive part via PLC & TOUCH
- Display Total Production Qty / 1 Cycle Takt Time
- Display PAD & PLATE replacement cycle
- Display INK usage cycle
SPECIFICATION
| Classification | Specification (MM) |
| IMAGE PLATE SIZE | 240 * 500 |
| INK CUP | 220 |
| Max Print IMAGE | 175 |
| Horizontal (Fwd/Bwd) STROKE | 500 |
| Vertical (Up/Down) STROKE | 380 |
| Drive Method | Air Cylinder (Pressure 6bar) & Z-axis Servo |
| Control Method | PLC & TOUCH SCREEN |
| Power Consumption | 110/220, 50/60Hz |
| Machine Dimensions | 1200 * 1750 * 2170 |
| Options | PAD CLEANNING, 10T STEEL PLATE |
