Shape

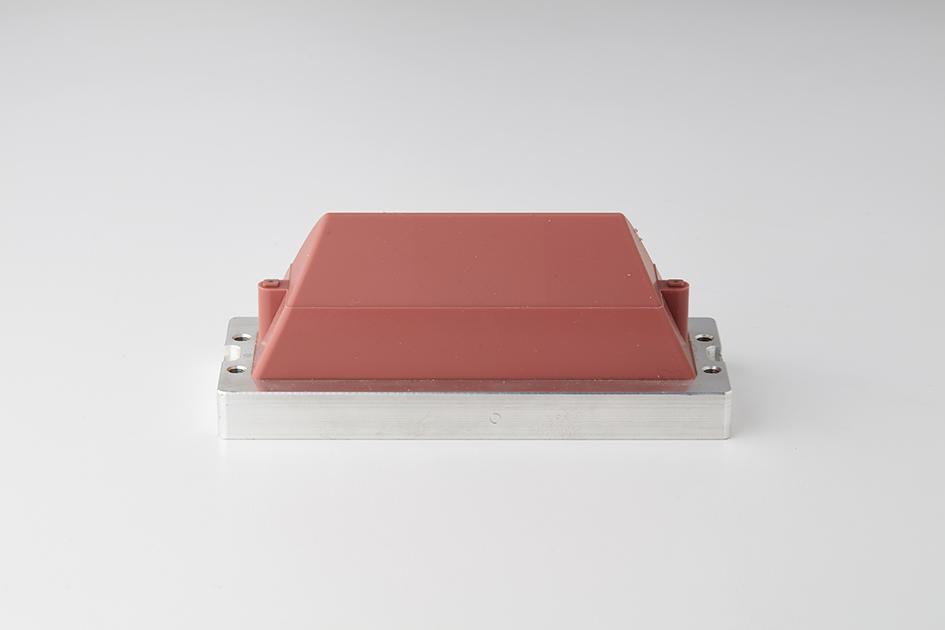

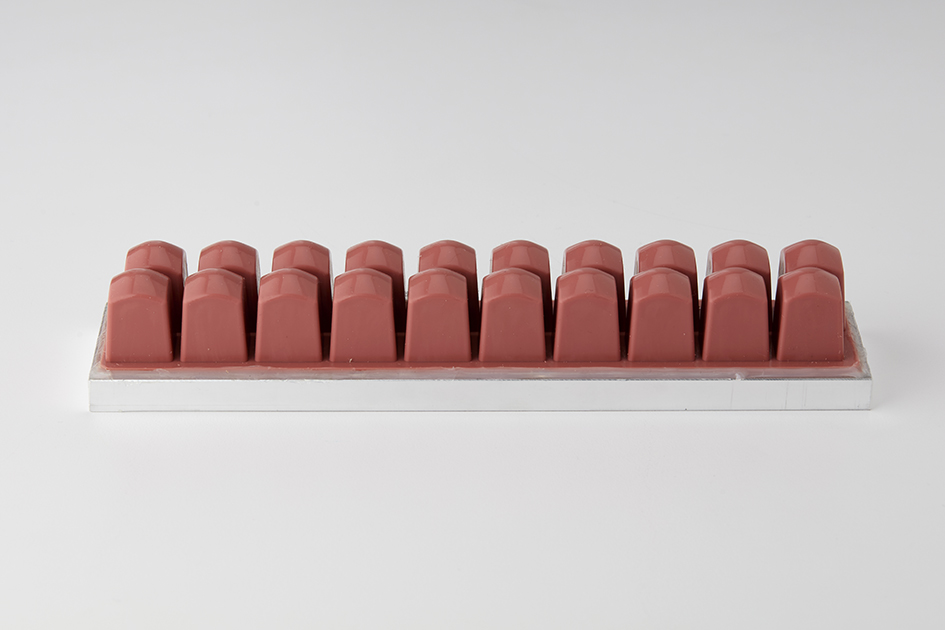

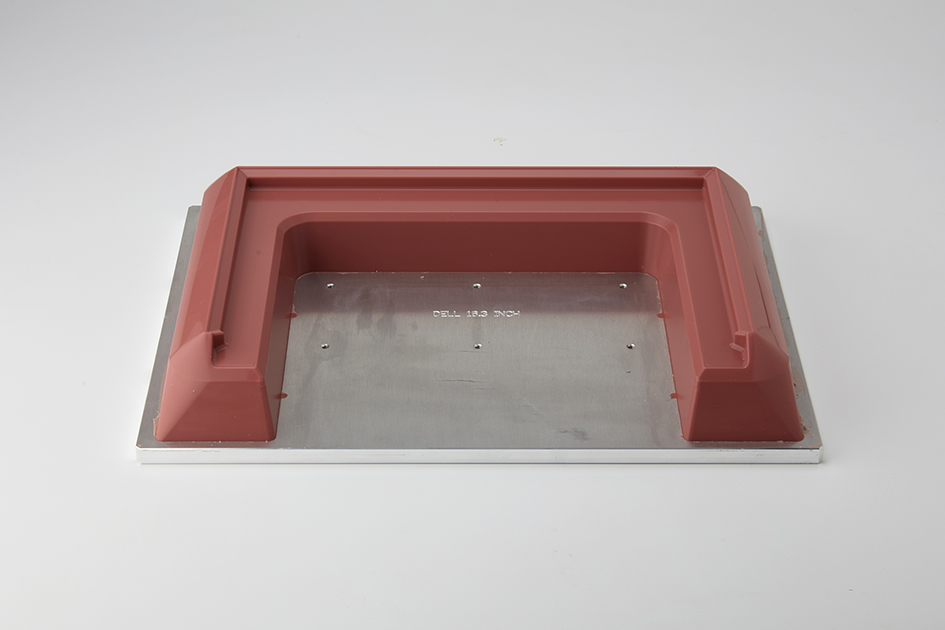

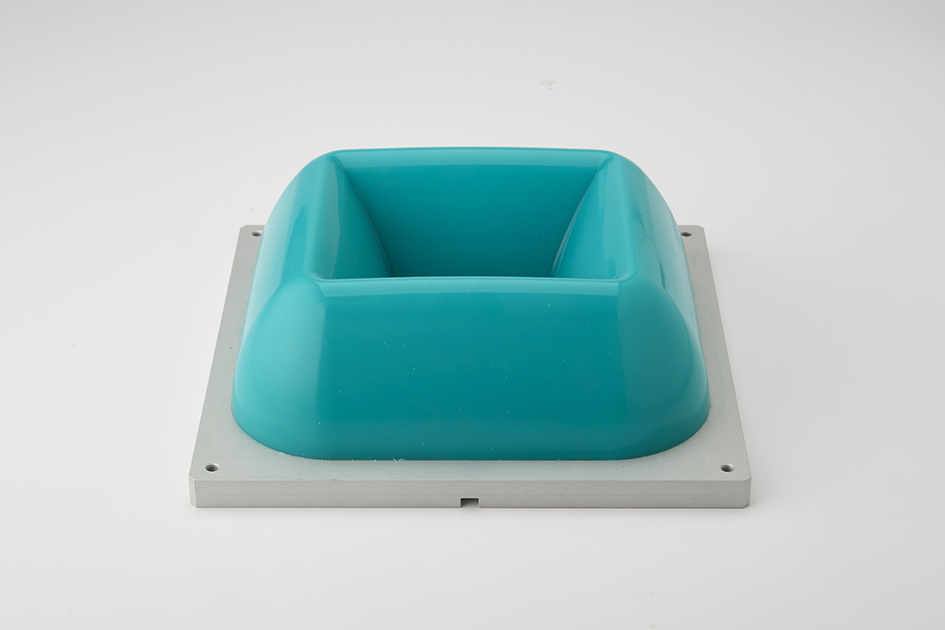

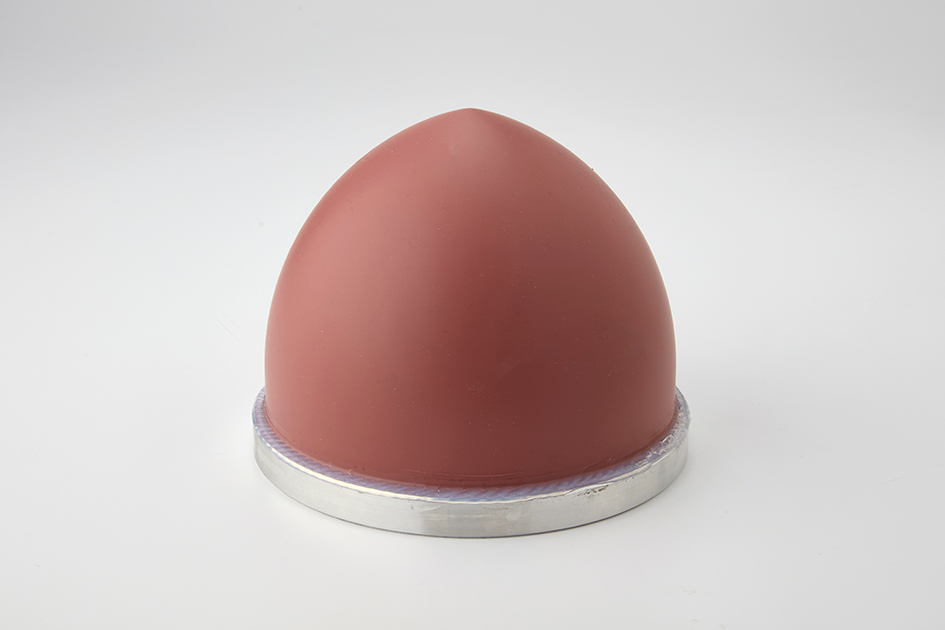

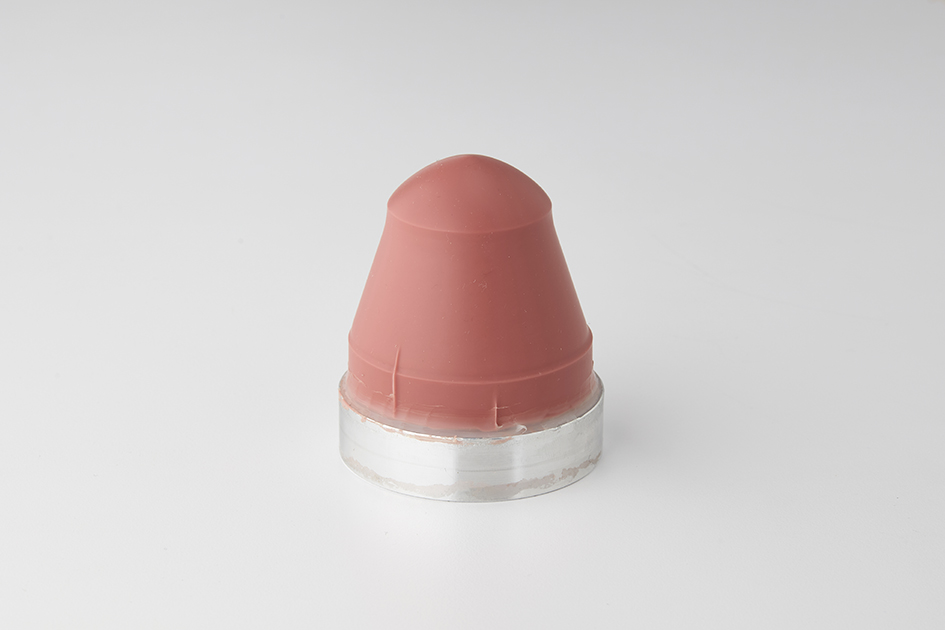

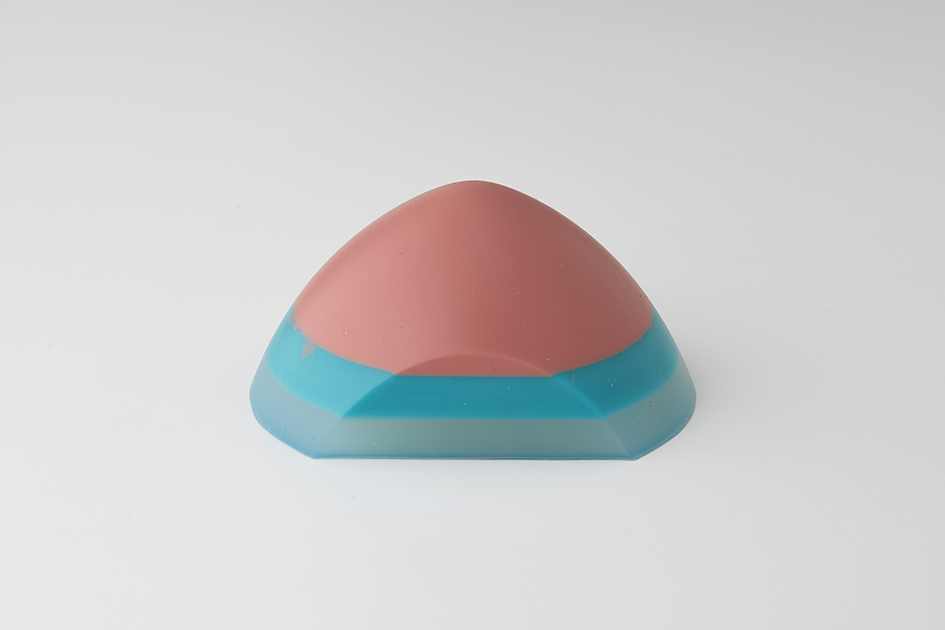

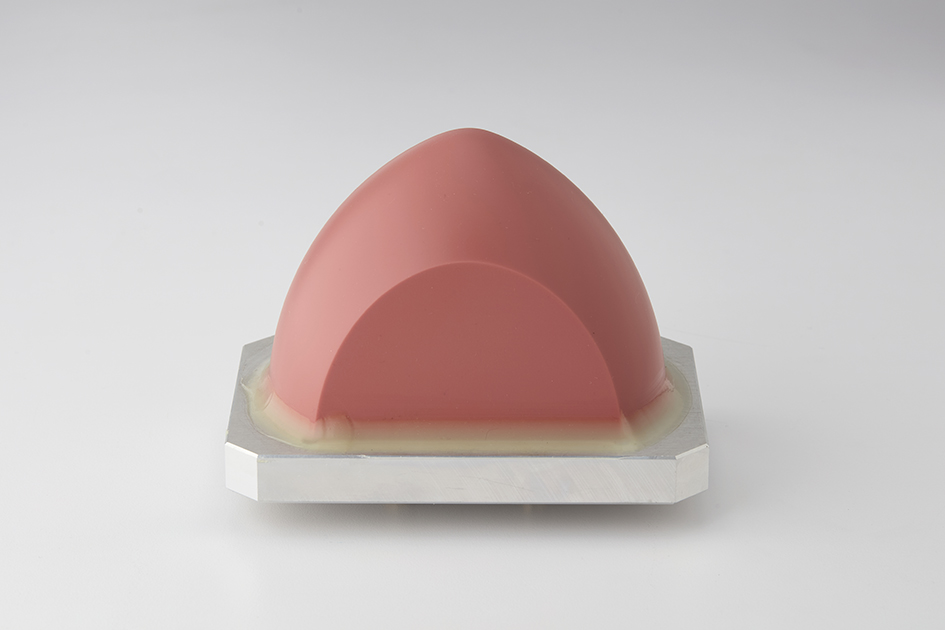

Silicone Pads
As trend-sensitive products globally, such as mobile phones, adopt bold designs or patterns, the difficulty of the printing surface is increasing. In pad manufacturing, techniques are becoming increasingly complex and require higher technical skills compared to traditional manufacturing methods. Also, since the pad is closely related to print quality in the pad printing factory, proper selection criteria must be premised to obtain the desired quality.

FEATURES

  • Excellent ink adsorption and transfer capabilities allow for nearly perfect image transfer.
  • High tensile strength and durability against solvents and ink ensure a long lifespan.
  • Continuous use is possible depending on the pad’s elasticity, shape, and print quality.
  • It is used for the highest quality printing among existing industrial printing methods.

Factors to Consider When Selecting a Pad

  • Shape and surface condition of the substrate
  • Area and size of the surface to be printed
  • Characteristics of the ink
  • Number of colors to be printed
  • Hourly production output of the product
  • Machine speed
  • Ability to maintain consistent quality during continuous printing operations
  • Testing whether the pad’s curvature and elasticity are correct
Shape

Plate - Image Etched Plate

Features of Alcohol Resin Plates Supplied by PS Industry

  • Highly effective for high-mix, low-volume production.
  • Anyone can easily and quickly make a plate at any time with just a plate-making machine and ethyl alcohol.
  • It has been widely used globally for high-quality printing for a long time.
  • Typical applications: Printing on high-value model trains and automotive plastic models.

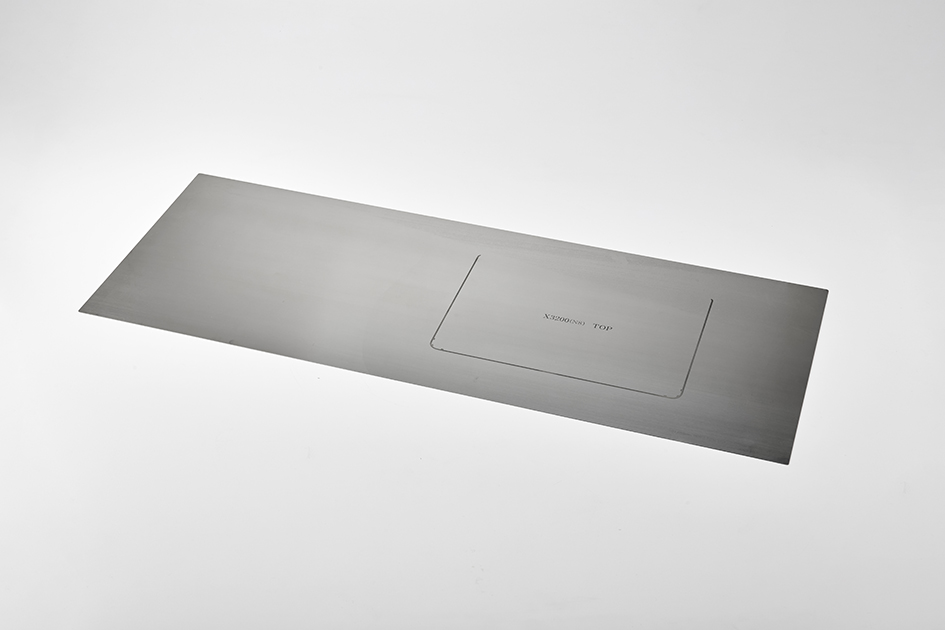

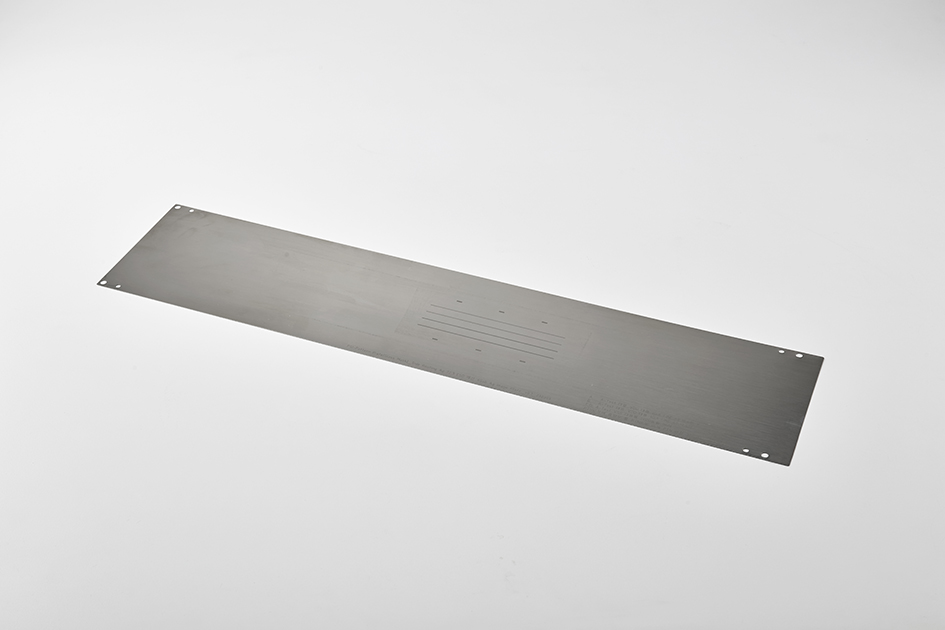

Features of Steel Plates Supplied by PS Industry

  • In the case of 0.3t, it is a product designed to combine the advantages of resin plates and steel plates.
  • It has a long lifespan and is very effective for low-mix, high-volume production.
  • Unlike resin plates, the plate-making process requires a separate etching step, demanding high-level etching technology.
  • Therefore, there is the inconvenience of having to request it from a specialized manufacturer.
  • It is widely used for printing on low-to-mid-priced products where price competitiveness is required.
We provide a one-stop service from raw material supply to the plate imaging process with the most reasonable prices and advanced technology, and we strive for product technology development to ensure smooth technical support tailored to customer specifications at any time.
Shape

Ink Cups

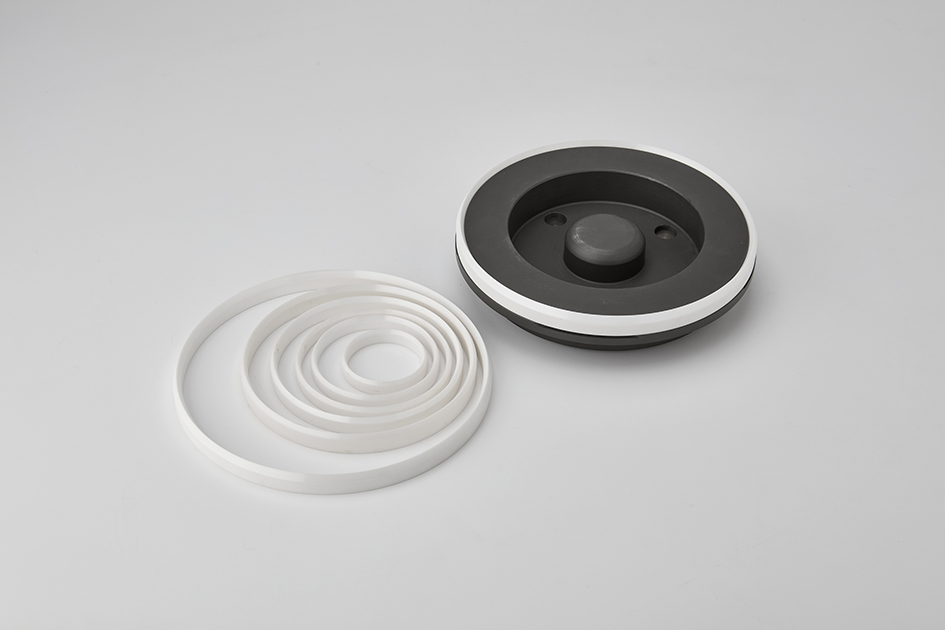

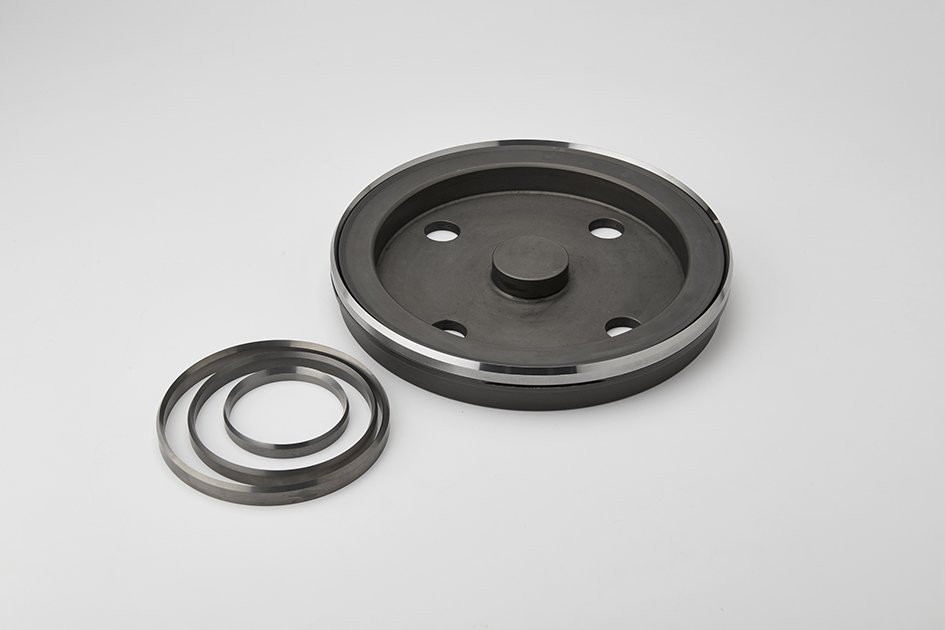

Features of Ceramic Ring Blade

  • Lifespan varies by ceramic material, so you must select a product known for durability and quality.
  • The better the ceramic blade, the longer it maintains flatness, which is effective for maintaining high-quality printing.

Advantages of Printing Equipment Equipped with Ceramic Ink Cups

  • Even when using 2-component ink, ink consumption is significantly reduced.
  • The solvent content in the ink cup is maintained for a long time.
  • Cleaning the equipment upon completion of work is very easy and convenient.
  • After work, remaining ink can be sealed in the cup for reuse; however, if left for too long, reuse may become impossible due to the ink’s own chemical reaction.
  • The magnetic force built into the ink cup and the smooth, sturdy movement of the guide reduce the wear rate of the image plate, making it economical by lowering consumable costs.
PSA also provides Tungsten Carbide Ring Blades, which can be used for a long time on steel plates, upon customer request.
